Case studies · Protection
1,100 operations in 33 minutes, from reclosers that never locked out
Twelve episodes on ten reclosers at six utilities. None of the utilities knew, and no customer complained.
- Where
- Six utilities, from small cooperatives to a large investor-owned utility
- Scope
- 10 reclosers at 6 utilities
- Worst case
- About 1,100 operations in 33 minutes
- Customer complaints
- None
- Who knew
- Nobody, until DFA
What DFA reported

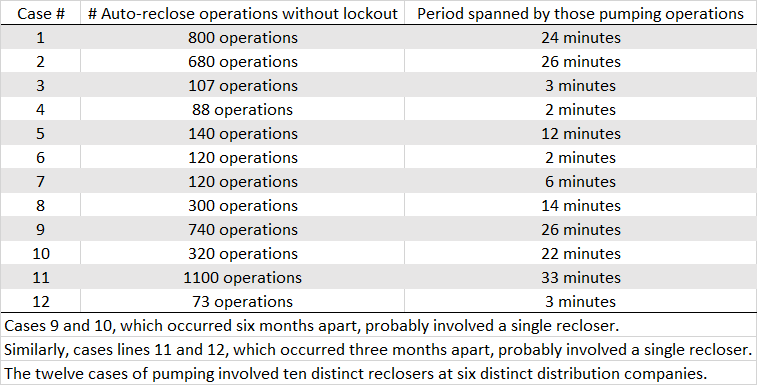

A line recloser set to lock out after a few trips should never reclose dozens of times. DFA has documented twelve episodes in which hydraulic reclosers did exactly that. In the worst, a recloser on a 25 kV circuit operated about 1,100 times in 33 minutes. Another pumped 740 times, then six months later about 320 times in 22 minutes, 13 of them in a single minute.
What the crew found
Each utility was unaware, and none of those contacted had received a single customer complaint. DFA recorded every operation from the substation, with the phase and the current.
Why it matters
Every reclose into a fault is another ignition chance, another interruption for customers beyond the recloser, and more damage at the fault and inside the recloser. One recloser did it twice, six months apart.
